Portable borewell Machine in India
Synergy Rigs offer portable hydraulic in well drilling rig, portable water well drilling rig, portable water well drilling machine and SRDTH 100 in well portable drill rig.

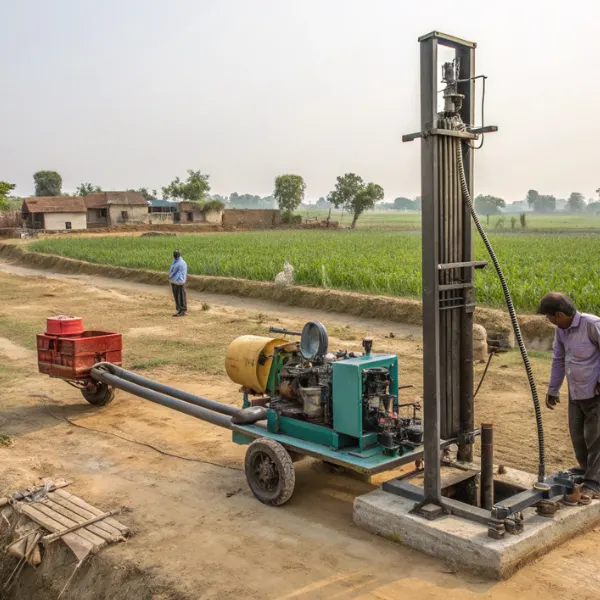

Manufacturer and Supplier of high quality Portable borewell Machine in india. The portable Skid Mounted Drilling Rig is ideal for borewell drilling applications. Its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The Portable borewell drilling machine flexibility means it can be mounted on Wheel, it is without Compressor.
| Usage/Application | Borewell / Water Well |
| Model Name/Number | SRDTH-50 |
| Drilling Rig Type | Portable Drilling Rigs |
| Drilling Depth | Maximum 100 Meters |
| Power Source | Pneumatic |
| Hole Diameter | 100-200 mm |
| Automation Grade | Semi Automatic |
| Air Compressor | 600 cfm @ 200 psi |
| Feed System | Feed & Hoist actuation Pulley,Wire rope & Hydraulic cylinder. |
| Pull Up Force | 3,500 Kg-f |
| Pull Up Speed | 2,100 Kg-f |
| Rotary Head | Fabricated steel body |
| Rotation Speed Rpm | Spindle rpm: 0-25 rpm |
| Warranty | 6 mnths |
| Diameter of Drilling | 4"-6" |
| Carrier | Skid(Tripod) |
